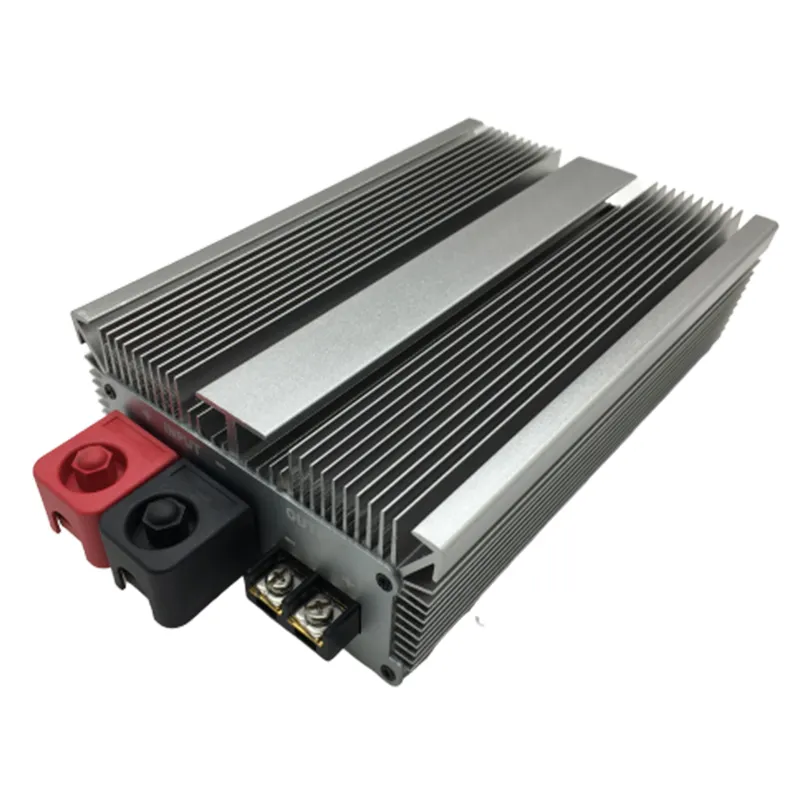

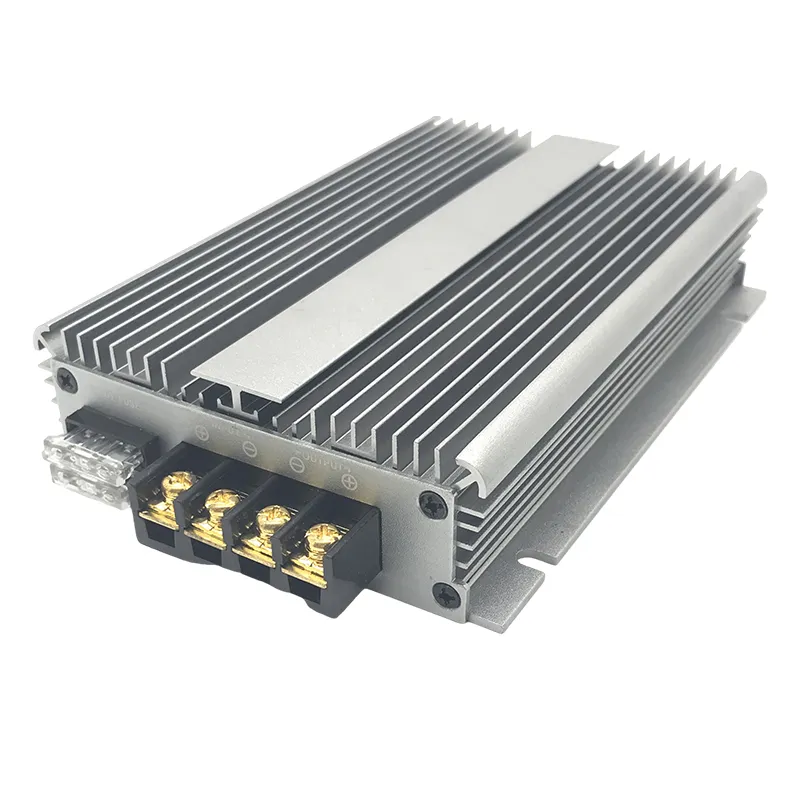

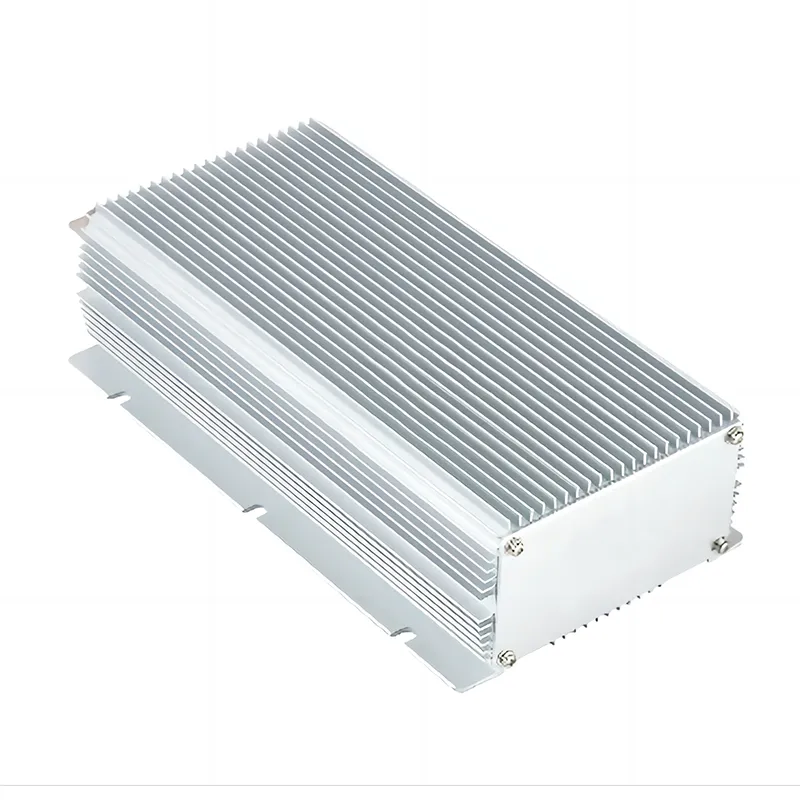

72V to 24V DC Step dc dc converter 5A/10A/20A/30A/40A/50A/60A/70A/80A/100A/120A/150A/200A
Input Voltage: DC30V-90V Output voltage: DC24V Output current : 5A/10A/20A/30A/40A/50A/60A/70A/80A/100A/120A/150A/200A Design: Non Isolated (We provide customized for different kinds of DC-DC solutions, if you can not find the right specification to meet your requirement. Contact us now! It will not cost you one cent when you ask us anything, but it may be a chance for both of us)
- Input Voltage: DC 30V-90V / Output Parameters: DC24V, 5A/10A/20A/30A/40A/50A/60A/70A/80A/100A/120A/150A/200A.
- High conversion efficiency: Synchronous Rectification Technology, multiple intelligent protection functions, conversion efficiency of up to 93%, good stability, and easy installation.
- Protection: High-quality aluminum shell, Fast heat dissipation. Built-in Overload, Overcurrent, Overvoltage, Overtemperature, and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation
- Application: Widely used in golf carts, photovoltaic, electric power, monitoring systems, automobiles, electric bicycles motorcycle scooters, LED, instruments, etc
- Precision manufacturing, excellent performance, one-year warranty, worry-free after-sales, and rapid response.
- keywords: dc dc converter
| IDEALPLISING DC-DC Model list | |||||
| Item | DC Input Voltage(Choose one Voltage) |
DC Output Voltage |
Peak Power(Choose one Power) | Continuous Power | Efficiency |
| #1 | DC12V±15% DC24V±15% DC36V±15% DC48V±15% DC60V±15% DC72V±15% DC90V±15% DC100V±15% DC110V±15% DC120V±15% DC130V±15% DC150V±15% DC200V±15% DC220V±15% DC250V±15% DC280V±15% DC300V±15% DC310V±15% DC400V±15% DC450V±15% DC500V±15% DC550V±15% DC600V±15% DC650V±15% DC700V±15% 110VAC±15% 220VAC±15% 380VAC±15% |
DC12V±1-2% | 100W 200W 300W 400W 500W 600W 750W 1000W 2000W 3000W 4000W 5000W 6000W 7500W 8000W |
Peak Power*80% | 90±4% |
| #2 | DC24V±1-2% | 90±4% | |||
| #3 | DC36V±1-2% | 90±4% | |||
| #4 | DC48V±1-2% | 90±4% | |||
| #5 | DC60V±1-2% | 90±4% | |||
| #6 | DC72V±1-2% | 90±4% | |||
| #7 | DC80V±1-2% | 90±4% | |||
| #8 | DC100V±1-2% | 90±4% | |||
| #9 | DC110V±1-2% | 90±4% | |||
| #10 | DC150V±1-2% | 90±4% | |||
| #11 | DC200V±1-2% | 90±4% | |||
| #12 | DC220V±1-2% | 90±4% | |||
| #13 | DC250V±1-2% | 90±4% | |||
| #14 | DC280V±1-2% | 90±4% | |||
| #15 | DC300V±1-2% | 90±4% | |||
| #16 | DC310V±1-2% | 90±4% | |||
| #17 | DC350V±1-2% | 90±4% | |||
| #18 | DC400V±1-2% | 90±4% | |||
| #19 | DC450V±1-2% | 90±4% | |||
| #20 | DC500V±1-2% | 90±4% | |||
| #21 | DC550V±1-2% | 90±4% | |||
| #22 | DC600V±1-2% | 90±4% | |||
| #23 | DC650V±1-2% | 90±4% | |||
| #24 | DC700V±1-2% | 90±4% | |||
| #25 | DC800V±1-2% | 90±4% | |||
| #26 | DC1000V±1-2% | 90±4% | |||
| Noted: (1)The input voltage can be customized to any voltage, and the input range is ±15%; (2)The output voltage can be customized to any voltage, and the output voltage is fixed; (3)Input and output isolation design; (4)Output mode: Default constant voltage output. If charging or using power in parallel, please select constant current mode. This mode can also be used as a charger (three-stage charging); (5)Protective function:Undervoltage, overvoltage, overload, temperature protection; (6)Application: machine room motors, vehicle-mounted marine, communication room, workshop base station, street lighting, instrumentation and so on. |
|||||
| All specifications are subject to charge or change without prior notice! | |||||
