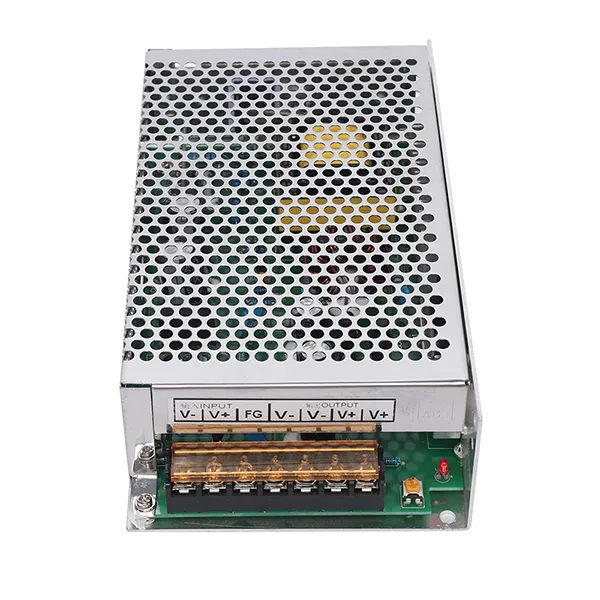

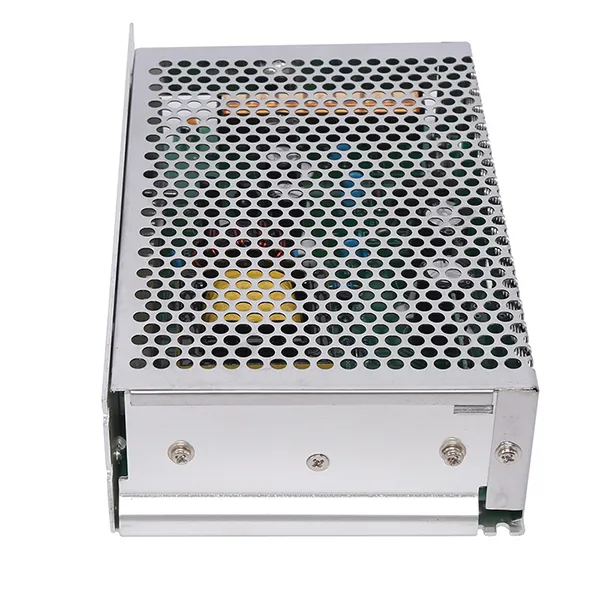

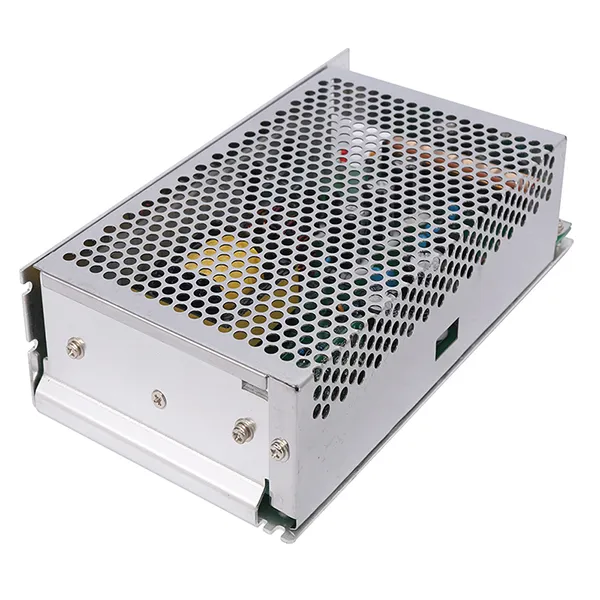

100V to 12V, 24V, 36V, 48V,64V,100V,150V,200V,100W DC Step dc dc converter
Input Voltage: DC100V(±2%) Output voltage: DC24V, DC36V, DC48V,DC64V,DC100V,DC150V,DC200V,DC250V,DC280V, DC300V, DC350V Output power: 100W Design: Isolated (We provide customized for different kinds of DC-DC solution, if you can not find the right specification to meet your requirement. Contact us now! It will not cost you one cent when you ask us anything, but it may be a chance for both of us)
- Input Voltage: DC 100V
- Output voltage: DC24V, DC36V, DC48V,DC64V,DC100V,DC150V,DC200V,DC250V,DC280V, DC300V, DC350V
- Output power: 100w
- High conversion efficiency: Synchronous Rectification Technology, multiple intelligent protection functions, conversion efficiency of up to 93%, good stability, and easy installation.
- Protection: High-quality aluminum shell, Fast heat dissipation. Built-in Overload, Overcurrent, Overvoltage, Overtemperature, and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation.
- Application: Widely used in golf carts, photovoltaic, electric power, monitoring systems, automobiles, electric bicycles motorcycle scooters, LED, instruments, etc
- Precision manufacturing, excellent performance, one-year warranty, worry-free after-sales, and rapid response.
| Input voltage | Output voltage | Max output current | Continuous current | Max power | Continuous power | Size (MM)L*H*W | NW/GW（G） |
| 100VDC±15% | 24VDC±1-2% | 4.18A | 3.33A | 100W | 80W | 159*98*38MM | 0.5KG/0.8KG |
| 100VDC±15% | 36VDC±1-2% | 2.78A | 2.22A | 100W | 80W | 159*98*38MM | 0.5KG/0.8KG |
| 100VDC±15% | 48VDC±1-2% | 2.08A | 1.67A | 100W | 80W | 159*98*38MM | 0.5KG/0.8KG |
| 100VDC±15% | 64VDC±1-2% | 1.56A | 1.25A | 100W | 80W | 159*98*38MM | 0.5KG/0.8KG |
| 100VDC±15% | 100VDC±1-2% | 1.0A | 0.8A | 100W | 80W | 159*98*38MM | 0.5KG/0.8KG |
| 100VDC±15% | 150VDC±1-2% | 0.67A | 0.53A | 100W | 80W | 159*98*38MM | 0.5KG/0.8KG |
| 100VDC±15% | 200VDC±1-2% | 0.5A | 0.4A | 100W | 80W | 159*98*38MM | 0.5KG/0.8KG |
| 100VDC±15% | 220VDC±1-2% | 0.45A | 0.36A | 100W | 80W | 159*98*38MM | 0.5KG/0.8KG |
| 100VDC±15% | 250VDC±1-2% | 0.4A | 0.32A | 100W | 80W | 159*98*38MM | 0.5KG/0.8KG |
| 100VDC±15% | 280VDC±1-2% | 0.36A | 0.286A | 100W | 80W | 159*98*38MM | 0.5KG/0.8KG |
| 100VDC±15% | 300VDC±1-2% | 0.33A | 0.267A | 100W | 80W | 159*98*38MM | 0.5KG/0.8KG |
| 100VDC±15% | 350VDC±1-2% | 0.28A | 0.228A | 100W | 80W | 159*98*38MM | 0.5KG/0.8KG |
