Introduction to Non-Isolated Converters

Table Of Contents

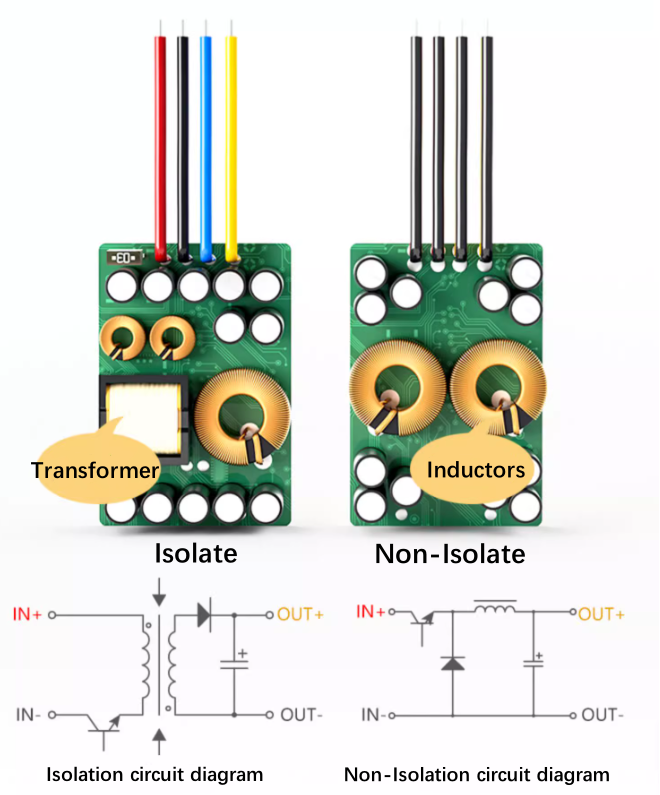

What is a non-isolated converter

A non-isolated converter is a device that performs a specific conversion function in a circuit and has no electrical isolation function.

First point: working principle

Non-isolated converters usually use energy storage elements such as inductors and capacitors and semiconductor switching devices to achieve different forms of energy conversion. For example, in a DC-DC non-isolated converter, the duty cycle of the input voltage is changed by controlling the on and off time of the switching device, so that different voltage values are obtained at the output.

Second point: characteristics

1. Small size and low cost: Since no large components such as isolation transformers are required, non-isolated converters usually have a small size, which is convenient for use in occasions with limited space.
   At the same time, reducing the number of components also reduces costs.

2. High efficiency
   There is no energy loss caused by isolation components, and the conversion efficiency is relatively high.

3. Fast response speed
   Because the circuit structure is relatively simple, the non-isolated converter responds quickly to input changes.

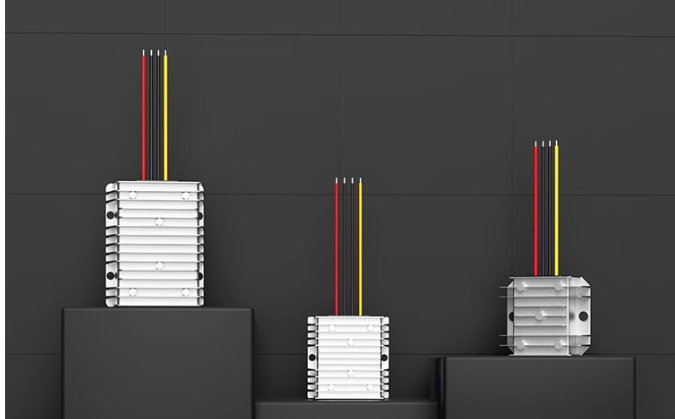

Characteristics of Non-Isolated Converters

Finally: Application field

1. Electronic equipment power supply
   Many small electronic devices, such as mobile phone chargers, tablet chargers, etc., use non-isolated DC-DC converters to achieve conversion of different voltage levels to meet the needs of the internal circuits of the device.
   2.LED lighting
   In LED driving circuits, non-isolated converters can convert higher input voltages into constant current or constant voltage power supplies suitable for LED operation, improving energy efficiency.
   3.Industrial automation
   1.In some industrial control equipment with high cost and volume requirements, non-isolated converters can be used to provide stable power supplies.
