The principle of DC-DC converter

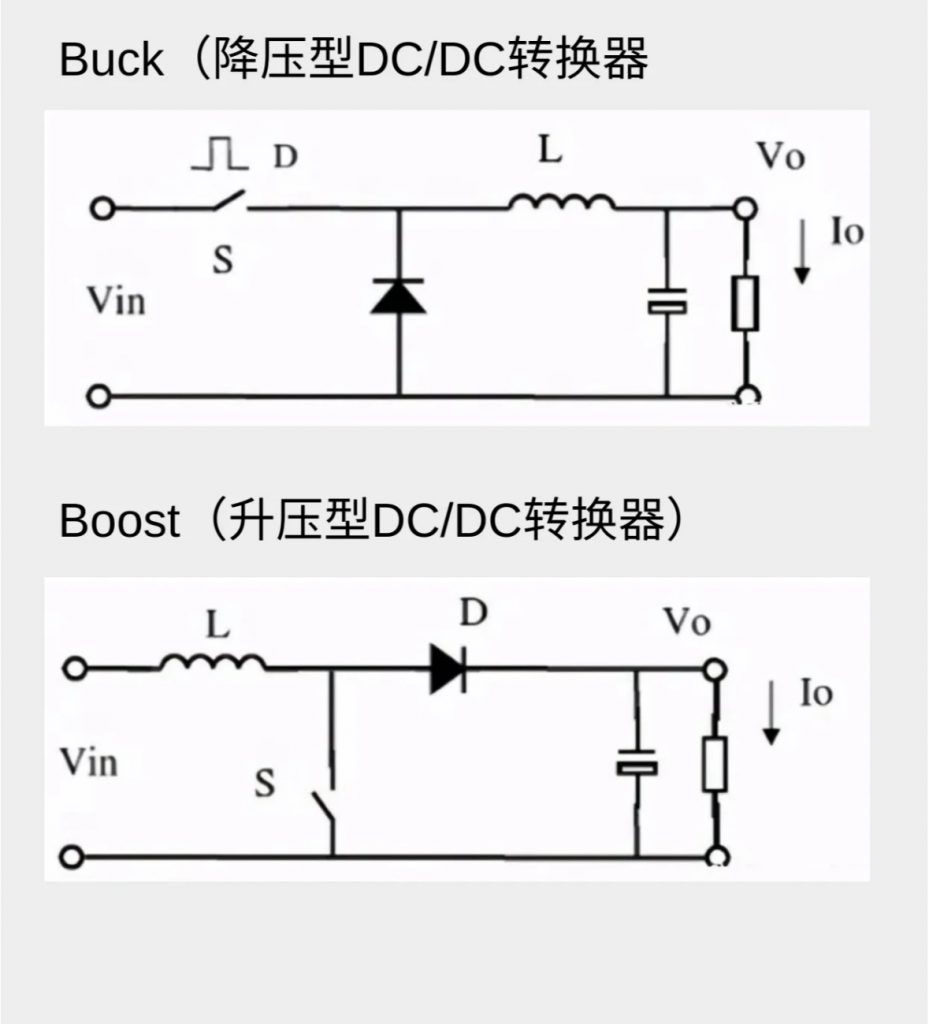

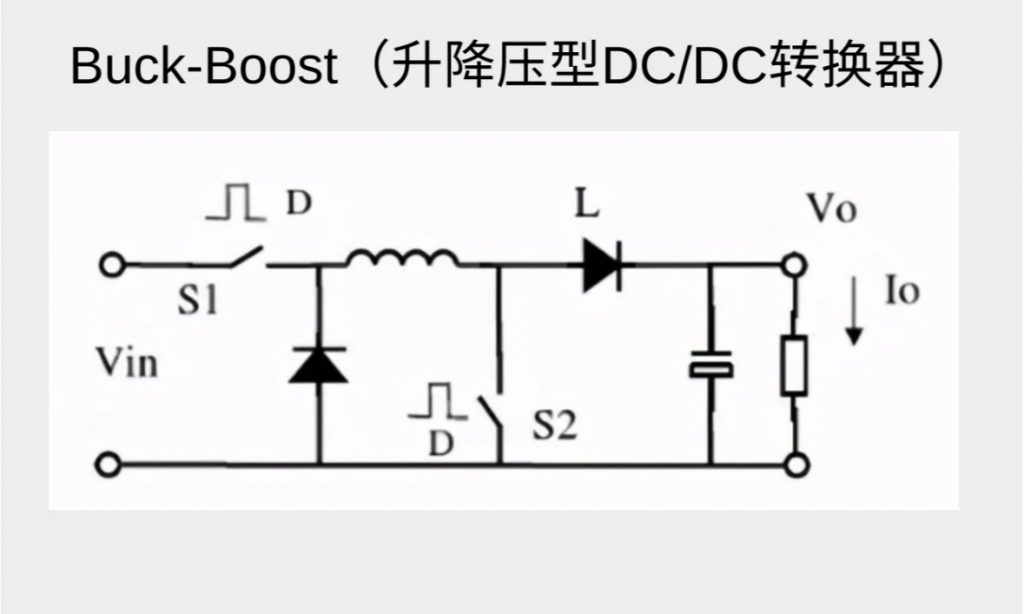

The principle of DC-DC converter is to use components such as inductors, capacitors, transistors, etc. to convert the input voltage of the DC power supply into output voltage, thereby realizing the function of voltage regulation. The specific working principle is that when the input voltage passes through the inductor, the inductor will generate an electromagnetic field, the capacitor will convert the electromagnetic field into voltage, and the transistor will convert the voltage into output voltage, thereby realizing the function of voltage regulation.
The characteristics of DC-DC converters are:
1. Wide input voltage range, can accept a variety of input voltages;
2. High output voltage accuracy, can meet the voltage requirements of different devices;
3. Large output power, can meet the power requirements of different devices;
4. High efficiency, can effectively reduce energy consumption;
5. Small and light, can meet the requirements of limited space
DC Converter Product Dimensions and Weight
| Small plastic | 46*27*14 (MM) | 35G |
| Small aluminum shell | 44*24.5*20(MM) | 45G |
| Medium plastic | 46*32*18(MM) | 45G |
| Large plastic | 58*40*22(MM) | 90G |
| Medium aluminum | 66*57*22(MM )/66*58*23(MM) | 125G |
| Large aluminum | 74*74*32(MM) | 300G |
| Larger aluminum | 100*80*39(MM) | 480G |
| Extra large aluminum | 125*105*52(MM) | 1KG |
Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
Hot Sellers
Model:IPS-DTD48S12125
Input Voltage: 48VDC±15%
Output voltage: 12VDC±1-2%
Output current : 125A
Design: Isolated
